One of our core technologies is dissimilar metal welding technology.
Resistance welding has been indispensable to the development of our company to this day.
As a result, many customers have been pleased with the equipment that utilizes this technology. Our extensive know-how enables us to weld copper to copper, copper to aluminum, etc., which are generally considered difficult.
Welding power source Development results since establishment
The welding power source developed by our company has been nurtured since its inception.
This is because we have been working on this project, valuing not only the voices of our customers but also internal communication.
Precision resistance welding can only be achieved through a thorough understanding of the characteristics of the different metals to be welded and our experience in this field.
Clean Spot Series

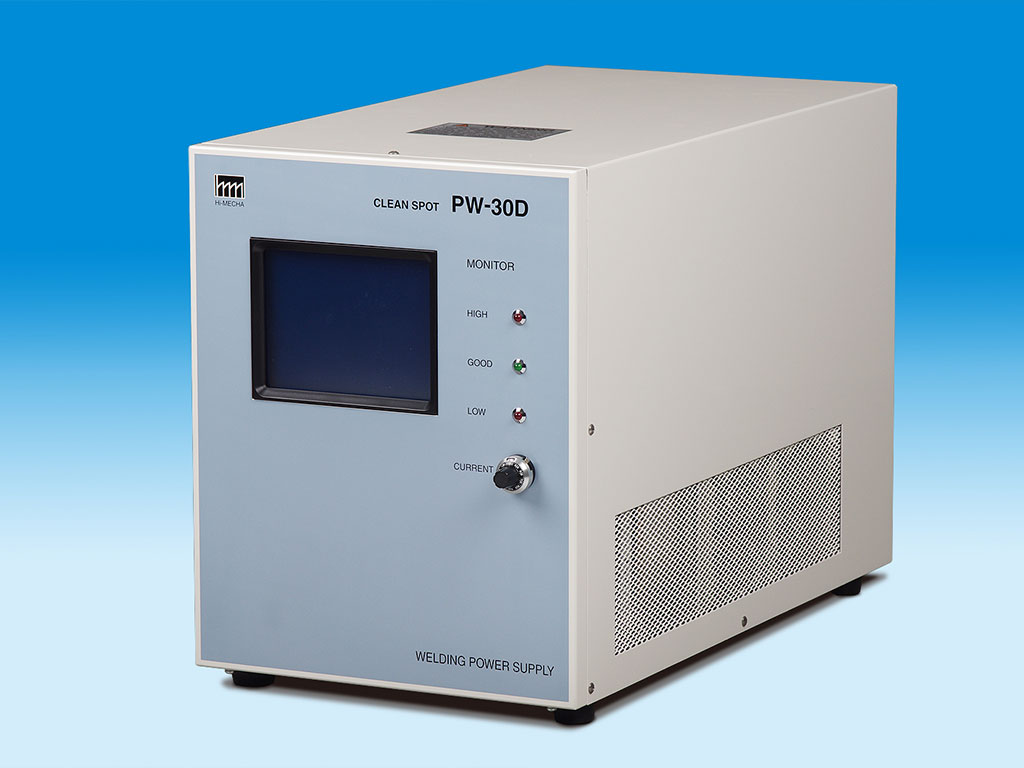

PW-30D
Resistance Weld Power Supply “PW-30D” is born as the crystallization of our 30 years of weld technology.
Built-in LCD touch panel for easy operation.
Downsizing (80 % content of previous model) Lightweighing ( 63 % weight of previous model)
By combining the use of our designed weld-head, precise and minute weld can be achieved.
Specification
| Input Voltage | AC200V to AC240V,50/60Hz,1-phase |
|---|---|
| Input Amperage | 1KVA |
| Input Inrush Current | 40Amps typical |
| Max Output Voltage | 9.000Volt |
| Max Output Current | 3000Amps |
| Output Rise Time | 100μsec max.(Welding Power Supply alone) Varies with the connection cable length. |
| Output Setting Range (Pre-heat &Main-heat) |
Constant Voltage Control / 0～9.000Volt,3000Amps max Constant Current Control / 0～3000Amps,9.000Volt max Constant Power Control / 0～9000VA,3000Amps max |
| Time Setting Range | Pre-heat / 0～3000μsec Interval / 0～5000μsec Up-slope / 0～5000μsec Main Heat / 0～9999μsec Down-slope / 0～5000μsec |
| Weld Condition Memory | 15 settings |
| Control response Speed | 5msec |
| Cooling Method | Forced air cooling |
| Dimension | 270(W) × 490(D) × 345(H)mm |
| Weight | 25kg |
PW-05Arc
New product is added to our Power supply family.
Arc Weld Power Supply “PW-05Arc” which uses the arc discharge for welding.
It enables the satisfying weld even though the material and shape are difficult for spot weld.
Specification
| Input Voltage | AC200V |
|---|---|
| Input Amperage | 0.6KVA |
| Max Output Voltage | 50Volt |
| Max Output Current流 | 500Amps |
| Output Rise Time | 100μsec max.(Welding Power Supply alone) Varies with the connection cable length. |
| Output Setting Range (Pre-heat &Main-heat) |
Constant Current Control/0~500A 200~240V 50/60Hz (By the customer’s specification) |
| Time Setting Range | Pre-heat/0~9999μsec Interval/0~9999μsec Up-slope/0~9999μsec Main-heat/0~9999μsec Down-slope/0~9999μsec |
| Weld Condition Memory | 3 settings |
| Control response Speed | 5msec |
| Cooling Method | Forced air cooling |
| Dimension | 270(W) × 456(D) × 345(H)mm |
| Weight | 30kg |
Welding head CSH-V4
Desktop welding head for easy operation and handling
In combination with our resistance welding power supply, high quality resistance welding can be easily achieved.
- The vertical movement of the weld electrode is smooth due to the motor drive.
- There are two operation modes, "Inching" and "1 cycle stop".
- Easy to operate because it is operated with a foot switch.
- We can also manufacture positioning jigs for welded workpieces.
Specification
| Welding method | Direct welding |
|---|---|
| Electrode drive method | Motor drive |
| Action mode | “Inching" and "1 cycle stop |
| Pressurization method | Spring pressure |
| Pressurized | Max 10kgf |
| Weld electrode vertical stroke | 10mm |
| Welding electrode | Bar electrode(Φ8)* |
| Power supply pressurization | AC100V |
| External dimensions | 150(W)×220(D)×450(H)mm |
| Weight | 10㎏ |
| Accessories | Foot switch, Spare fuse |
* Welding electrodes are not included.
